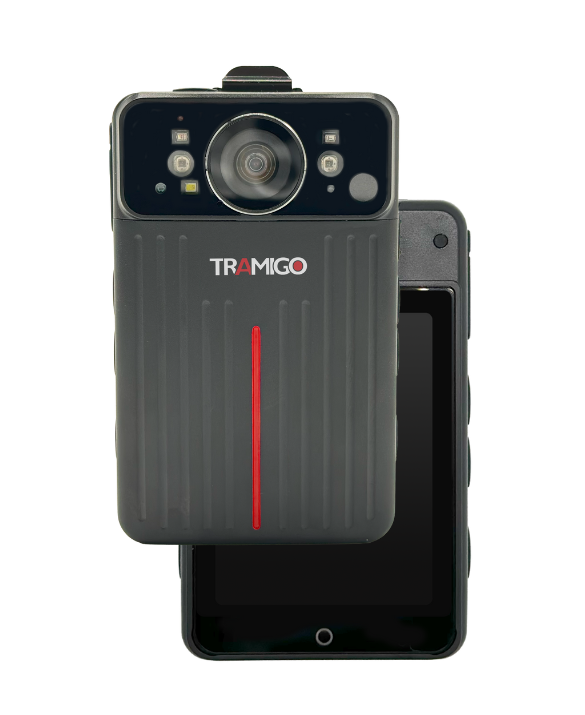

TRAMIGO MCPTT-BC4
COMPLETE SOLUTION FOR BODY WORN CAMERA
MCPTT-BC4 KEY FEATURES
RUGGED AND WATERPROOF
IP68 waterproof and dust-proof
CRYSTAL-CLEAR SOUND QUALITY
Loud and clear sound with minimum delay
ENCRYPTED COMMUNICATION
End-to-end AES-256 encrypted voice communication
DUAL CAMERA RECORDING
Front and rear camera for comprehensive view
BUILT-IN NFC
NFC for patrol check
GPS TRACKING FEATURES
Real-time tracking of other devices
MULTI-NETWORK CONNECTIVITY
Automatically connects to the best network available in the area
BUILT-IN eSIM
Supports nationwide and regional coverage across 190+ countries
AVAILABLE SOFTWARE OPTIONS
TRAMIGO MISSION CRITICAL PUSH-TO-TALK (MCPTT) SOLUTIONS HAVE THREE DIFFERENT SOFTWARE OPTIONS YOU CAN CHOOSE FROM BASED ON YOUR INTENDED USE CASES AND TEAM ROLES
Web-Admin
User friendly Web-Admin interface allows creating, adding and removing users and groups. Users and groups can be also created by uploading an excel file. All admin-functions are available over SOAP-protocol which allows to integrate PTT-management to company CRM and other business services.

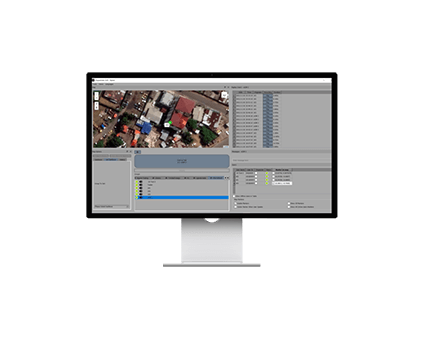

Control Center
The Windows PC MCPTT Control Center gives the possibility to monitor, track devices location, and communicate directly to devices. Audio in/out and text-input can be integrated using standard devices and connections, including wired and Bluetooth. Windows Dispatcher support 1-8 monitors allowing flexible scalability from entry-level single-display system to 8-screen video-wall.

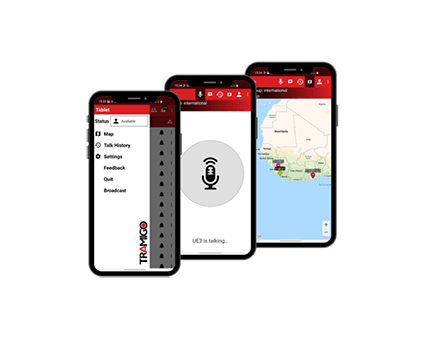

Mobile App Dispatcher
The Mobile App Dispatcher is compatible with Android and designed to allow communication with small groups and control center and track devices location as well. Mobile app dispatcher also allows you to request for a call back from the devices.
Got a case that needs more efficient communication? CONTACT TRAMIGO
MCPTT-BC4 Technical Specifications
Hardware specifications
| Size | 93*58*25mm |
| Weight | 165g |
| Display | 2.88 inch touch screen |
| CPU | MTK6762 |
| OS Version | Android 13 |
| Video Format | H.264/H.265 |
| Video Resolution | 1080P/30fps, 720P 60/30fps, 848P/30fps |
| Camera | Front: 48MP, Rear: 36 MP |
| Storage | 2GB+64GB |
| Bluetooth | BT4.2 |
| WiFi | 2.4/5GHz WiFi, IEEE 802.11 b/g/n |
| Battery | 3050mAh |
| Audio | 1W |
| Connector Type | USB Type-C |
| SIM Card | SIM |
| SD Card | Embedded |
| 3GPP | FDD-LTE B1, B2, B3, B5, B7, B8, B20, B28 TDD-LTE B34, B38, B39, B40, B41 WCDMA B1, B2, B5, B8 TD-SCDMA B34, B39 GSM Frequency 850/900/1800/1900MHz |
