Tramigo TF SERIES VEHICLE TRACKER
Affordable and versatile GPS tracking solution
COST-EFFICIENT SOLUTION
Essential tracking features at a highly affordable price
REAL-TIME TRACKING
Precise location monitoring in real time within a 5-meter radius
GEOFENCING
Automatically detects unauthorized movement beyond customizable zones/areas
REMOTE IMMOBILIZATION
Shuts down the engine remotely in case of emergency or theft
SECURITY ALARMS
Get notified in real-time in case of vehicle misuse or theft
NO LOCAL SIM REQUIRED
Removes the hassle of physical SIM management
MULTINETWORK CONNECTIVITY
Automatically connects to the strongest network in the area
COMPACT AND DISCREET
Easy to hide without taking up extra space

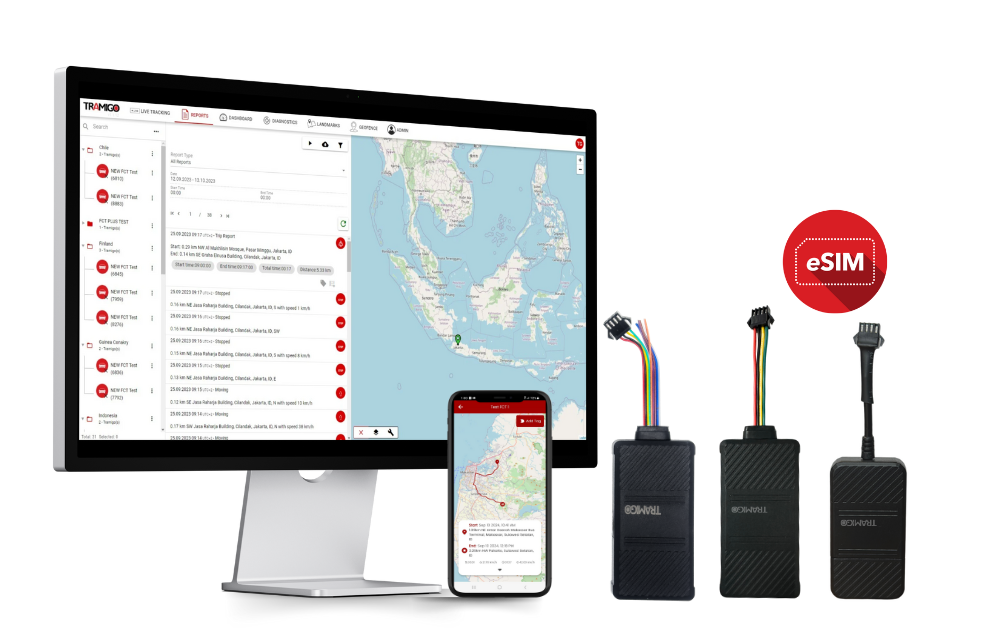

TF Series as a part of comprehensive tracking solution
REMOVES THE HASSLE OF MANAGING MULTIPLE PROVIDERS WITH COMPREHENSIVE TRACKING & FLEET MANAGEMENT SOLUTION
VERSATILE
TRACKING HARDWARE
TF series are built to support all vehicles of voltage range of 9-90V, including motorbikes, cars, trucks, buses, and other commercial or industrial fleets.
CENTRALIZED
SOFTWARE MANAGEMENT
TramigoApp provides a lightweight tracking solution, while TramigoCloud delivers comprehensive, cloud-based fleet management. For those seeking complete privacy, a self-hosted option is also available.
MULTINETWORK
CONNECTIVITY
Tramigo's multinetwork connectivity ensures the hardware is always connected by adopting for the best network in the area without locking to a single provider.
Tramigo TF150
The Tramigo TF150 offers basic, reliable vehicle management with 2G network support. It features remote immobilization, real-time tracking, customizable geofencing and smart alerts. Receive instant alerts for unauthorized movement or theft, and monitor your vehicle through our App or Cloud. It provides dependable regional coverage and free roaming for cross-border use.

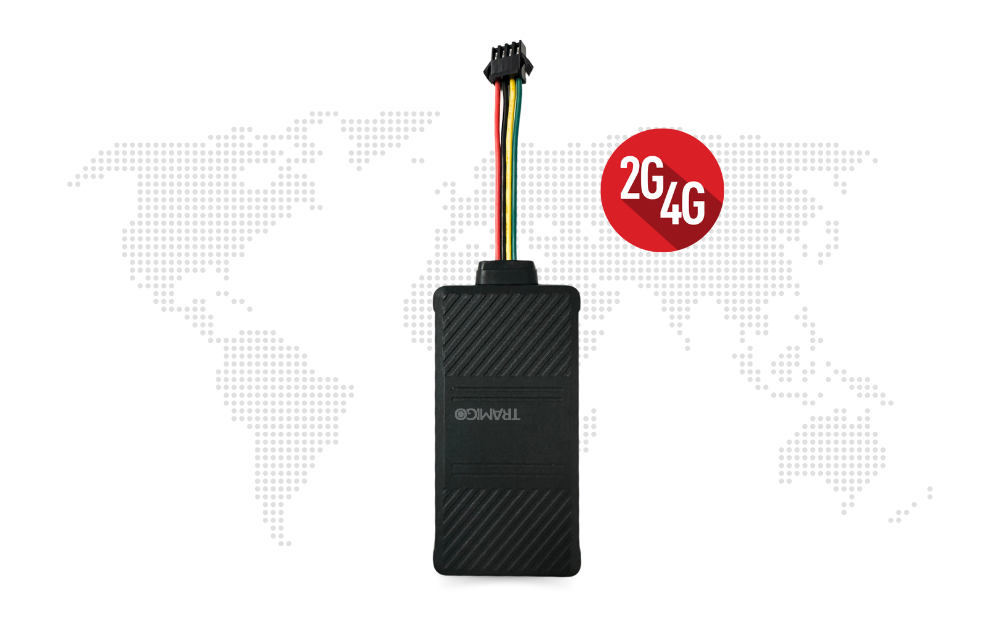

Tramigo TF220
The Tramigo TF220 supports 4G with 2G fallback, ensuring consistent connectivity especially where networks are not stable. It offers real-time updates, customizable geofencing, and immediate security alerts. Integrated with our App or Cloud, the TF220 ensures reliable monitoring and control with extensive network coverage and free roaming for local and cross-border needs.

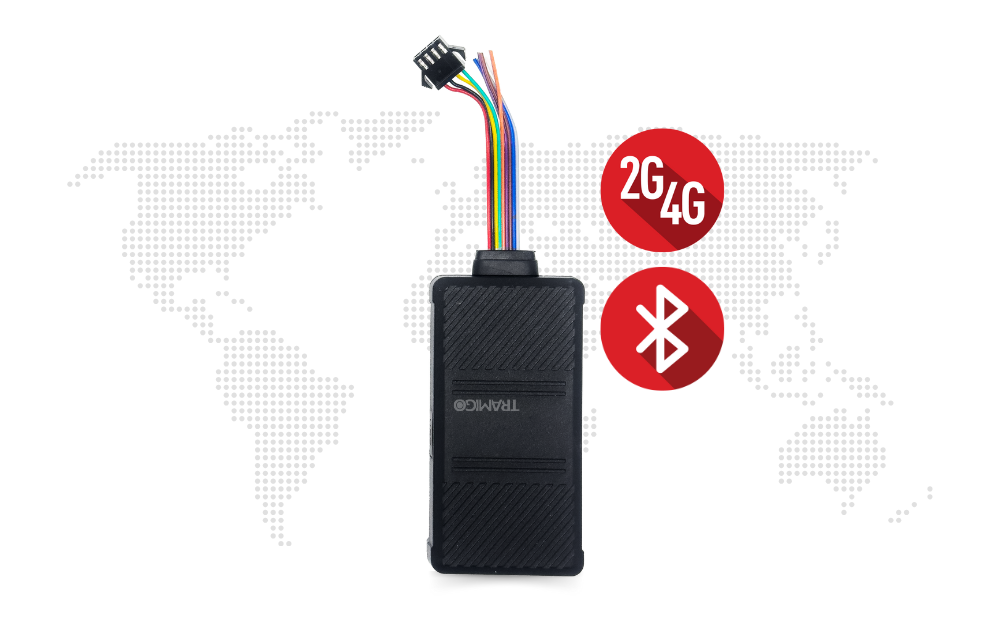

Tramigo TF290
The Tramigo TF290 supports 4G, 2G, and Bluetooth, offering advanced vehicle management. It delivers precise real-time tracking, dynamic geofencing, and instant security alerts. The TF290 integrates seamlessly with our App or Cloud for comprehensive monitoring and control, providing extensive regional and cross-border coverage along with Bluetooth connectivity for added flexibility.
Tramigo FCT technical specifications
Hardware specifications
- Dimensions: 78 mm x 40 mm x 15 mm
- Network: GSM/GPRS
- Frequency: 850/900/1800/1900 MHz
- GPS chipset: MTK high sensitivity
- GPS Channel tracking sensitivity: -165dBm
- Location accuracy: <10 meters CEP
- Working voltage: 9-90VDC
- GPRS Protocol: Class12, TCP/IP
- Operating Temp: -20°C to +70°C
- Back-up battery: 200mAh /3.7V Li-Polymer battery 5mA~50mA
- GSM/GPS antenna: Built-in
- Standby and Working consumption GSM/GPS antenna: 5mA~50mA
- G-sensor: Supported
- Geo-fence: Supported
- Angle change upload location: Supported
- Ignition status detection: Supported
- Memory capacity: 1400 positions
- Micro USB interface configuration mode: Flash firmware/Configuration
- Power interface: PC – USB/GPRS/SMS
- Micro USB interface configuration mode: 4 PIN (Power/ACC/Relay)
