TRAMIGO TF SERIES VEHICLE TRACKER

AFFORDABLE AND VERSATILE GPS TRACKING SOLUTION

VERSATILE GPS TRACKING
FOR ANY VEHICLE, ANY TERRAIN

The Tramigo TF series is an essential and powerful tracking solution for all vehicle types, ranging from commercial fleets, personal cars, to heavy-duty vehicles, designed for diverse environments. Offering real-time monitoring and control, it ensures reliable performance from busy cities to remote areas, keeping your vehicles safe and operations efficient.
CONTACT US
COST-EFFICIENT SOLUTION

Essential tracking features at a highly affordable price

REAL-TIME TRACKING

Precise location monitoring in real time within a 5-meter radius

GEOFENCING

Automatically detects unauthorized movement beyond customizable zones/areas

REMOTE IMMOBILIZATION

Shuts down the engine remotely in case of emergency or theft

SECURITY ALARMS

Get notified in real-time in case of vehicle misuse or theft

NO LOCAL SIM REQUIRED

Removes the hassle of physical SIM management

MULTI-NETWORK CONNECTIVITY

Automatically connects to the strongest network in the area

COMPACT AND DISCREET

Easy to hide without taking up extra space

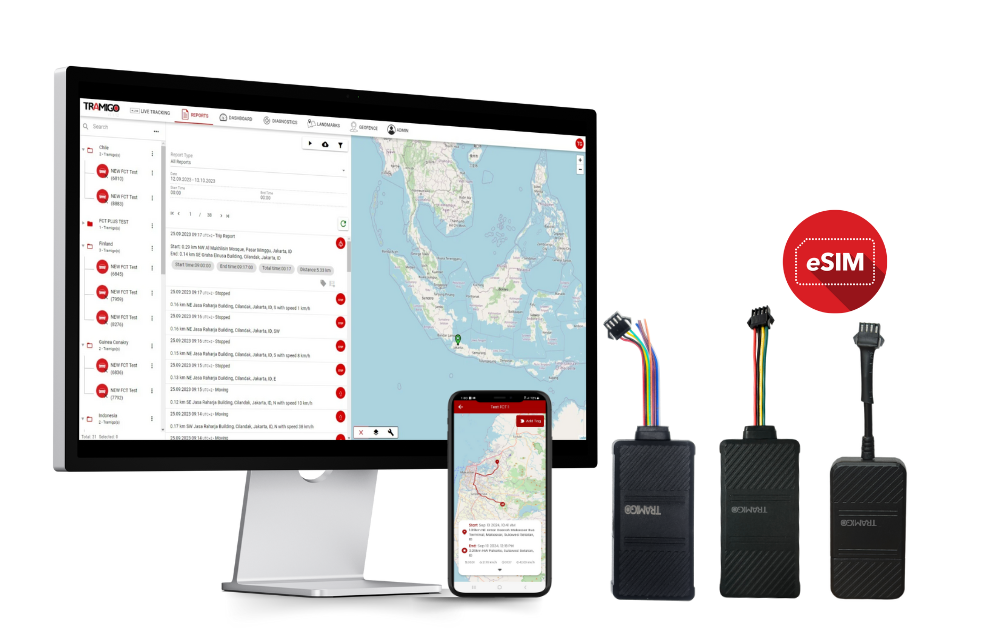

TF SERIES AS A PART OF COMPREHENSIVE TRACKING SOLUTION

REMOVES THE HASSLE OF MANAGING MULTIPLE PROVIDERS WITH COMPREHENSIVE TRACKING & FLEET MANAGEMENT SOLUTION

VERSATILE
TRACKING HARDWARE

TF series are built to support all vehicles of voltage range of 9-90V, including motorbikes, cars, trucks, buses, and other commercial or industrial fleets.

CENTRALIZED
SOFTWARE MANAGEMENT

TramigoApp provides a lightweight tracking solution, while TramigoCloud delivers comprehensive, cloud-based fleet management. For those seeking complete privacy, a self-hosted option is also available.

MULTI-NETWORK
CONNECTIVITY

Tramigo's multinetwork connectivity ensures the hardware is always connected by adopting for the best network in the area without locking to a single provider.

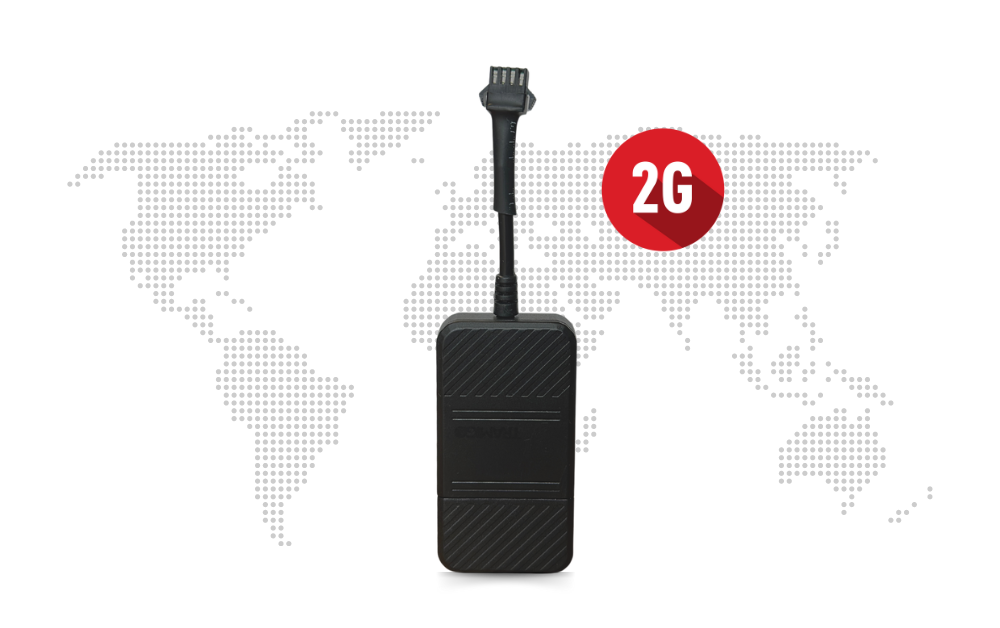

TRAMIGO TF150

The Tramigo TF150 offers basic, reliable vehicle management with 2G network support. It features remote immobilization, real-time tracking, customizable geofencing and smart alerts. Receive instant alerts for unauthorized movement or theft, and monitor your vehicle through our App or Cloud. It provides dependable regional coverage and free roaming for cross-border use.

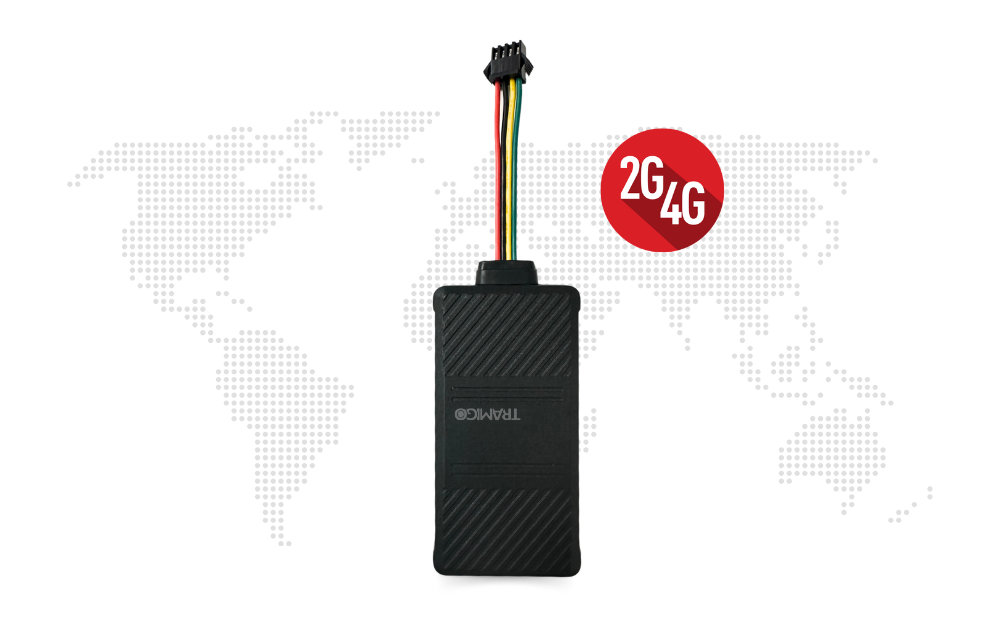

TRAMIGO TF220

The Tramigo TF220 supports 4G with 2G fallback, ensuring consistent connectivity especially where networks are not stable. It offers real-time updates, customizable geofencing, and immediate security alerts. Integrated with our App or Cloud, the TF220 ensures reliable monitoring and control with extensive network coverage and free roaming for local and cross-border needs.

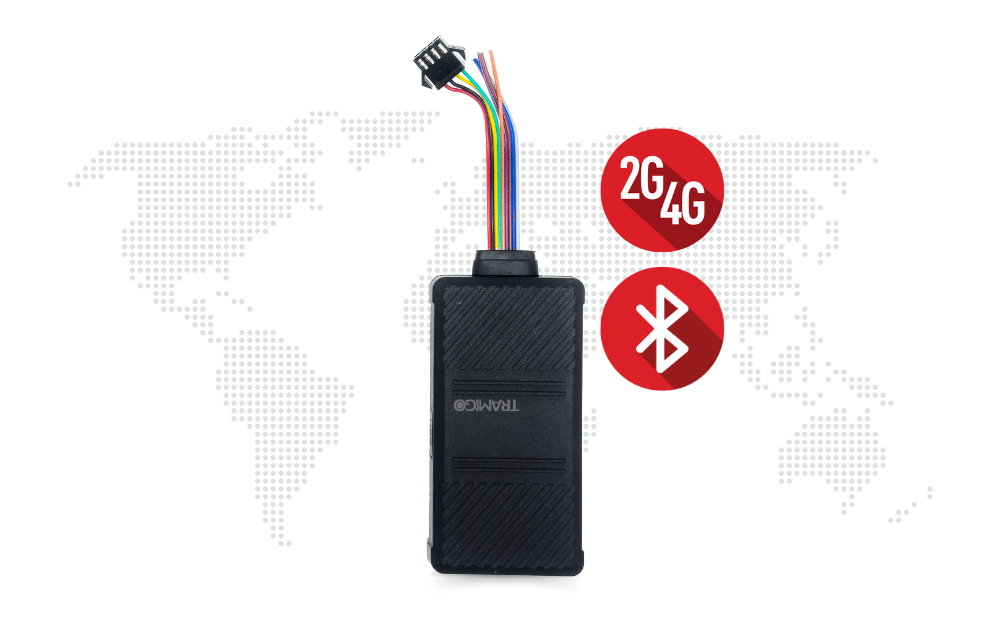

TRAMIGO TF290

The Tramigo TF290 supports 4G, 2G, and Bluetooth, offering advanced vehicle management. It delivers precise real-time tracking, dynamic geofencing, and instant security alerts. The TF290 integrates seamlessly with our App or Cloud for comprehensive monitoring and control, providing extensive regional and cross-border coverage along with Bluetooth connectivity for added flexibility.

Tramigo TF Technical Specifications

Hardware Specifications

Specification TF150 TF220 TF290
Dimensions78 x 40 x 15 mm90 x 44 x 18 mm90 x 44 x 18 mm
NetworkGSM/GPRSGSM/GPRS, LTEGSM/GPRS, LTE
Frequency850/900/1800/1900 MHzLTE B1–B5, B7, B8, B28, B66 + GSMLTE B1–B5, B7, B8, B28, B66 + GSM
Bluetooth––Bluetooth 2.4 GHz
GPS chipsetMTK high sensitivity
Tracking sensitivity-165 dBm
Location accuracy<10 meters CEP
GNSS SupportGPS, GLONASS, Galileo, Beidou, QZSS, SBAS
GNSS Channels56 search, 16 acquisition
Time to Fix (Open Sky)Hot start: 1s, Cold start: 35s
Low Power ModesSleep, Stop, Standby
Operating Temperature-40°C to +85°C
Voltage Range9–90VDC
Backup Battery200 mAh (Li-Polymer 3.7V, 5–50 mA)
GSM/GPS AntennaBuilt-in
Power ConsumptionActive: ~36 mA / Sleep: ~20 µA / Standby: ~2 µA
G-sensor3-Axis Digital Accelerometer ±8G
Geo-fenceSupported
Angle change uploadSupported
Ignition detectionSupported
Memory capacity1400 positions
Micro USB ConfigFlash firmware / Configuration
Power interfacePC – USB / GPRS / SMS
Wiring Interface4 PIN (Power / ACC / Relay)
TF150
  • Dimensions: 78 x 40 x 15 mm
  • Network: GSM/GPRS
  • Frequency: 850/900/1800/1900 MHz
  • GPS chipset: MTK high sensitivity
  • Tracking sensitivity: -165 dBm
  • Location accuracy: <10 m CEP
  • GNSS: GPS, GLONASS, Galileo, Beidou, QZSS, SBAS
  • GNSS Channels: 56+16
  • Time to fix: Hot 1s, Cold 35s
  • Low Power Modes: Yes
  • Operating Temp: -40°C to +85°C
  • Voltage: 9–90VDC
  • Battery: 200 mAh Li-Polymer
  • Antenna: Built-in
  • Power Consumption: 36 mA / 20 µA / 2 µA
  • G-sensor: 3-Axis ±8G
  • Geo-fence: Supported
  • Angle change: Supported
  • Ignition: Supported
  • Memory: 1400 positions
  • USB config: Flash/Configuration
  • Power interface: PC – USB / GPRS / SMS
  • Wiring: 4 PIN
TF220
  • Dimensions: 90 x 44 x 18 mm
  • Network: GSM/GPRS, LTE
  • Frequency: LTE B1–B5, B7, B8, B28, B66 + GSM
  • GPS chipset: MTK high sensitivity
  • Tracking sensitivity: -165 dBm
  • Location accuracy: <10 m CEP
  • GNSS: GPS, GLONASS, Galileo, Beidou, QZSS, SBAS
  • GNSS Channels: 56+16
  • Time to fix: Hot 1s, Cold 35s
  • Low Power Modes: Yes
  • Operating Temp: -40°C to +85°C
  • Voltage: 9–90VDC
  • Battery: 200 mAh Li-Polymer
  • Antenna: Built-in
  • Power Consumption: 36 mA / 20 µA / 2 µA
  • G-sensor: 3-Axis ±8G
  • Geo-fence: Supported
  • Angle change: Supported
  • Ignition: Supported
  • Memory: 1400 positions
  • USB config: Flash/Configuration
  • Power interface: PC – USB / GPRS / SMS
  • Wiring: 4 PIN
TF290
  • Dimensions: 90 x 44 x 18 mm
  • Network: GSM/GPRS, LTE
  • Frequency: LTE B1–B5, B7, B8, B28, B66 + GSM
  • Bluetooth: Yes (2.4 GHz)
  • GPS chipset: MTK high sensitivity
  • Tracking sensitivity: -165 dBm
  • Location accuracy: <10 m CEP
  • GNSS: GPS, GLONASS, Galileo, Beidou, QZSS, SBAS
  • GNSS Channels: 56+16
  • Time to fix: Hot 1s, Cold 35s
  • Low Power Modes: Yes
  • Operating Temp: -40°C to +85°C
  • Voltage: 9–90VDC
  • Battery: 200 mAh Li-Polymer
  • Antenna: Built-in
  • Power Consumption: 36 mA / 20 µA / 2 µA
  • G-sensor: 3-Axis ±8G
  • Geo-fence: Supported
  • Angle change: Supported
  • Ignition: Supported
  • Memory: 1400 positions
  • USB config: Flash/Configuration
  • Power interface: PC – USB / GPRS / SMS
  • Wiring: 4 PIN
