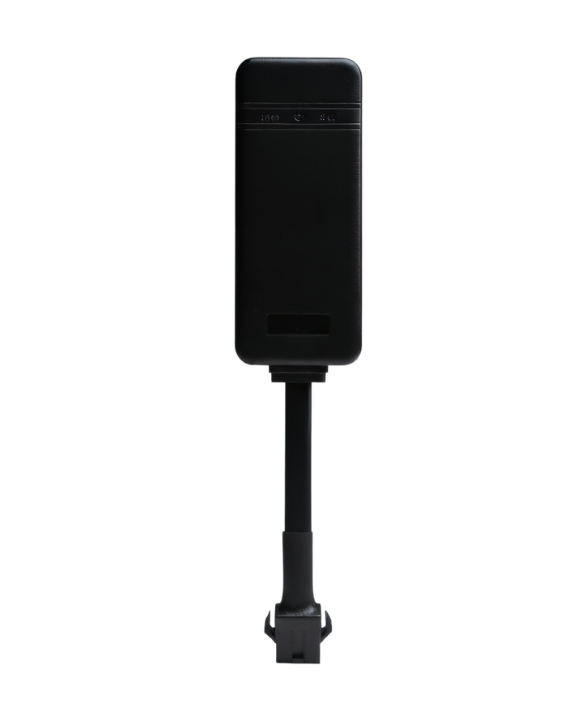

TRAMIGO FCT NX

COMPACT ESSENTIAL TRACKING SOLUTION WITH RELIABLE CONNECTIVITY

Never Lose Sight
of Your Vehicle

Get affordable, essential tracking solution with nationwide coverage and reliable 4G-2G fallback connectivity. Gain complete peace of mind from real-time tracking, smart alerts, and remote immobilization that give you total control.
Contact Us

FCT NX TRACKER FEATURES

ACCURATE LIVE TRACKING

Get precise, real-time location updates with accuracy within 2.5m

4G WITH 2G FALLBACK

Ensure continuous tracking with reliable backup coverage in low-signal areas

REMOTE IMMOBILIZATION

Disable your vehicle remotely to prevent theft or unauthorized use

DRIVER BEHAVIOUR INSIGHTS

Monitor driving patterns like harsh braking, over speeding to improve safety

SMART ALARMS

Get power cut alarms, motion alarms and ignition detection

GEOFENCING

Set up geofences and receive instant alerts when vehicles enter or exit designated areas

BUILT-IN BATTERY

Continue tracking even when the main power source is disconnected

MULTI-NETWORK CONNECTIVITY

Easily switch to the strongest available network

Compact and
Easy to install

The FCT NX is easy to install in just a few simple steps. Its compact yet capable design allows for discreet placement, helping it stay hidden, reduce tampering, and deliver reliable tracking performance.

Contact Us

Reliable tracking with
advanced connectivity technology

Track confidently with multi-network connectivity that automatically switches to the strongest available signal, 4G with 2G fallback, and B28 LTE support for extended coverage across the country.

GET A QUOTE

START TRACKING SMARTER

Everything included, easy to deploy

STEP 1
REGISTER THE DEVICE IN THE APP

STEP 2
INSTALL THE DEVICE IN A FEW STEPS

STEP 3
START TRACKING INSTANTLY

Tramigo FCT NX — Product Specifications

Physical Specification

  • Dimensions: 74 (L) × 31 (W) × 13 (H) mm

GNSS

  • GNSS Frequency: BDS B1: 1561.098 MHz; GPS L1: 1575.42 MHz
  • Positioning Accuracy: < 2.5 m (CEP50)
  • TTFF (Open sky): Avg. hot start ≤ 3 seconds; Avg. cold start ≤ 32 seconds

Cellular

  • Technology: 4G + 2G
  • 4G bands (FDD): B1 / B3 / B5 / B7 / B8 / B20 / B28
  • 4G bands (TDD): B34 / B38 / B39 / B40 / B41
  • 2G bands: GSM 850 / 900 / 1800 / 1900 MHz

Sensitivity

  • Tracking Sensitivity: −162 dBm
  • Acquisition Sensitivity: −148 dBm

Power

  • Input Voltage: 9–90 V DC
  • Battery: 55 mAh / 3.7 V Li-Polymer battery

Interface

  • Indication: GPS (Blue), GSM (Green), Power (Red)

Operating Environment

  • Operating Temperature: −20 °C to +70 °C
