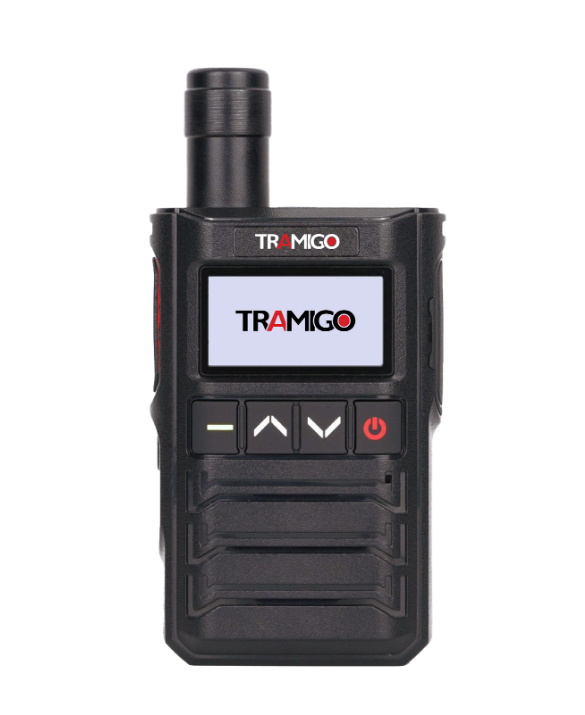

TRAMIGO MCPTT-XR

4G PUSH-TO-TALK SOLUTION FOR EVERYDAY USE

COMPLETE, COMPACT
PUSH-TO-TALK COMMUNICATION FOR DAILY OPERATION

MCPTT-XR offers affordable Push-to-Talk communication for businesses and everyday use.
Compact and easy to use, it integrates instant voice communication, GPS tracking, and smart multi-network 4G connectivity in one solution.
Contact Us

MCPTT-XR KEY FEATURES

CRYSTAL CLEAR SOUND QUALITY

Loud, clear audio for effective communication in busy environments

ONE-TO-ONE AND GROUP CALLS

Connect multiple team members instantly for seamless coordination

PLUG AND PLAY

Quick to set up and ready to use in minutes

GPS TRACKING AND GEOFENCING

Monitor team locations in real time for better visibility and coordination

ENCRYPTED COMMUNICATION

AES-256 encryption ensures your conversations are fully secured

NATIONWIDE 4G LTE COVERAGE

Suitable for metropolitan areas and regions with 4G LTE network across the country

DUAL SIM SIPPORT

Enables flexible connectivity with both eSIM and physical SIM cards

MULTI-NETWORK CONNECTIVITY

Automatically selects the best available network in the area

AVAILABLE SOFTWARE OPTIONS

TRAMIGO MISSION CRITICAL PUSH-TO-TALK (MCPTT) SOLUTIONS HAVE THREE DIFFERENT SOFTWARE OPTIONS YOU CAN CHOOSE FROM BASED ON YOUR INTENDED USE CASES AND TEAM ROLES

WEB ADMIN

User friendly Web-Admin interface allows creating, adding and removing users and groups. Users and groups can be also created by uploading an excel file. All admin-functions are available over SOAP-protocol which allows to integrate PTT-management to company CRM and other business services.

CONTROL CENTER

The Windows PC MCPTT Control Center gives the possibility to monitor, track devices location, and communicate directly to devices. Audio in/out and text-input can be integrated using standard devices and connections, including wired and Bluetooth. Windows Dispatcher support 1-8 monitors allowing flexible scalability from entry-level single-display system to 8-screen video-wall.

MOBILE APP DISPATCHER

The Mobile App Dispatcher is compatible with Android and designed to allow communication with small groups and control center and track devices location as well. Mobile app dispatcher also allows you to request for a call back from the devices.

Got a case that needs more efficient communication? CONTACT TRAMIGO

Contact Us

Tramigo MCPTT-XR — Product Specifications

Power

  • Working Voltage: 3.7 V
  • Battery Capacity: 3000 mAh
  • Charging Port: USB Type-C

General

  • Language: English
  • Audio Port: K-type
  • Antenna: Built-in antenna

Cellular

  • LTE bands (FDD): B1 / B3 / B5 / B8 / B34 / B39
  • LTE bands (TDD): B38 / B40 / B41

RF Performance

  • Receiving Sensitivity: -106 dBm
  • Max Transmitting Power: 23 dBm ±2 dBm

Physical Specification

  • Dimensions: H: 112 mm; D: 32 mm; W: 61 mm (top), 56 mm (bottom)
  • Weight (with battery): 146 g

Operating Environment

  • Working Temperature: -20 °C to +60 °C
  • Storage Temperature: -20 °C to +60 °C

Audio

  • Audio Output Power: 2 W @ 10% distortion
