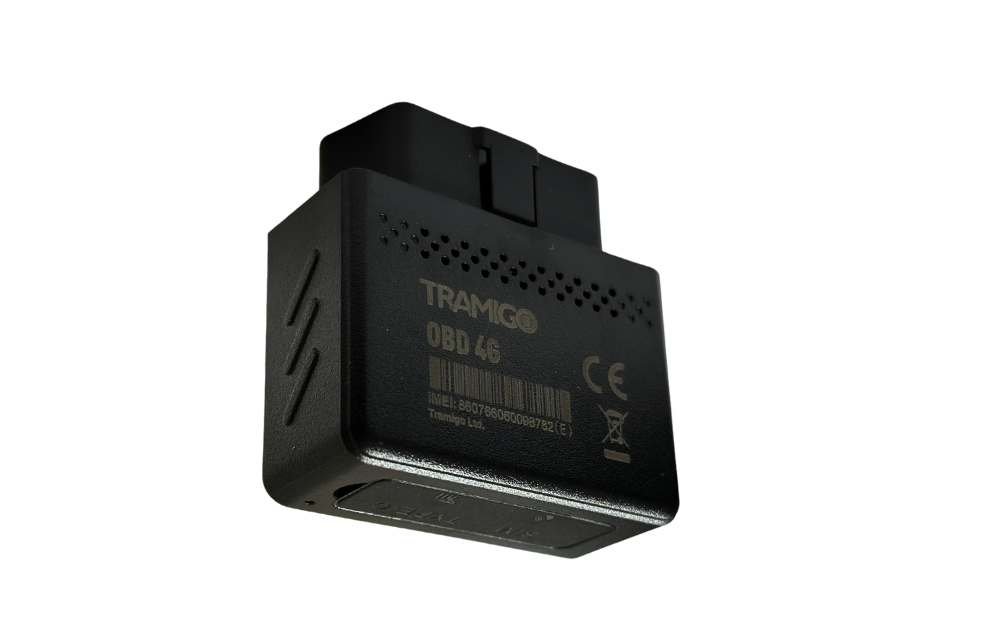

TRAMIGO OBD 4G

OBD TRACKER with Advanced Alerts AND 4G-2G FALLBACK

WIRE-FREE ADVANCED
OBD TRACKING SOLUTION

Drive smarter with precision tracking and modern connectivity.
Tramigo’s OBD 4G delivers plug-and-play simplicity with advanced 4G LTE and 2G fallback, giving you higher accuracy and real-time driver behaviour insights. Improve safety, meet regulations, and keep your vehicles connected anytime, anywhere.
Contact us
NO WIRING REQUIRED

Plug-and-play installation and ready to track in minutes

ACCURATE LIVE TRACKING

Monitor the vehicle in real-time with <2m accuracy

GEOFENCE ALERTS

Get notified if your vehicles are leaving or entering the geofenced zone

IGNITION DETECTION

Detects when vehicle is turned on/off

DRIVING HEHAVIOUR ALERTS

Monitor harsh acceleration, harsh braking, harsh cornering & collision

4G WITH 2G FALLBACK

Track from cities to urgan areas without fail

MULTI-NETWORK eSIM INCLUDED

Always connects to the strongest available network

BUILT-IN BATTERY

To enable continuous tracking in case of tampering

Monitor vehicles
from anywhere

Access live locations, trip history and other insights from TramigoCloud or TramigoApp. With multi-network connectivity and 4G-2G fallback, the vehicles stay connected at all times, even in weak network areas or cross borders.

Contact us

Track without
data cap or roaming fees

Enjoy unlimited eSIM tracking data with nationwide or regional coverage included with no extra fee. Tramigo’s multi-network connectivity automatically selects the best network in the area to ensure full visibility wherever the vehicle goes.

Learn more

Start tracking in minutes

Everything included. No installation required – simply plug into your vehicle's OBD port

STEP 1.
DOWNLOAD TRAMIGOAPP

STEP 2.
REGISTER THE DEVICE IN THE APP

STEP 3.
START TRACKING IMMEDIATELY

Tramigo OBD 4G Product Specifications

Hardware Specifications

  • Size: 51 mm × 50 mm × 22 mm (L×W×H)
  • Weight: 55 g
  • OBD Port: Supports 16-pin standard OBDII port
  • USB: 1 × USB Type-C
  • LED Indication: GNSS (Blue), Cellular (Green)
  • Data Storage: 8 + 16 MB

GNSS Specifications

  • Positioning System: GPS / BDS
  • Frequency: L1
  • Positioning Accuracy: < 2 meters
  • Track Sensitivity: −162 dBm
  • Acquisition Sensitivity: −148 dBm (cold) / −156 dBm (hot)
  • TTFF (open sky): Avg. hot start ≤ 1 s; Avg. cold start ≤ 32 s

Cellular

  • Communication Network: LTE Cat 1 + GSM
  • Frequency:
    • Cat 1 LTE-FDD: B1/B3/B7/B8/B20/B28
    • LTE-TDD: B34/B38/B39/B40/B41
    • GSM: B2/B3/B5/B8

Power

  • Battery: 50 mA / 3.7 V
  • Input Voltage: 9–36 V DC

Operating Environment

  • Operating Temperature: −20 ℃ to 70 ℃
  • Operating Humidity: 5%–95%, non-condensing
